מפרט טכני
Weight
4.25kg (9.4 lbs)
Dimension (H x W x D)
174 x 180 x 259 mm
178 x 180 x 259 mm with rubber feet
178 x 180 x 259 mm with rubber feet
Design
2-way Closed Box
Unit Measurement
Pair
Sensitivity
(2.83V/1m) 86dB
Frequency Range Free Field
96Hz-19.5kHz (-6dB)
Frequency Response
105Hz-18.5kHz (±3dB)
Crossover Frequencies
2.5kHz
Maximum Output
106dB
Amplifier Requirements
10-100W
Nominal Impedance
8 Ohms (min.4.6 Ohms)
Drive Units
130mm (5.25in.) aluminium Uni-Q
25mm (1in.) vented aluminium dome HF
25mm (1in.) vented aluminium dome HF
Crossover Frequencies
2.5kHz

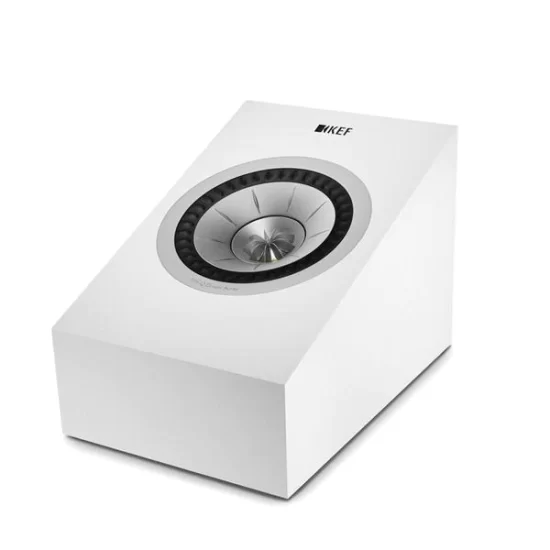

Finishes
Black / White
