Key Features
- 1 Stereo zone with HybridDigital™ amplification
- 2 x 60W
- Subwoofer out
- 3U height ‘Blade’ Chassis, up to six units fit in one rack space
- Ethernet connectivity
- Analogue audio input
- Digital optical input
- USB input
- Uses standard network protocols
- Universal voltage (100 ~ 240)
- Thermostatic fan cooling
- Third party control and automation integration drivers available
Audio
- Supported File Formats
- MP3, AAC, WMA, OGG Vorbis, WMA-L, FLAC, ALAC, WAV, AIFF, MQA, HRA
- Supported Cloud Services
- WiMP, Slacker Radio, Qobuz, HighResAudio, JUKE, Deezer, Murfie, HDTracks, Spotify, TIDAL, Napster, Microsoft Groove (with OneDrive), Classics Online, KKBox.
- Supported Operating Systems
- Microsoft Windows 7 SP1 or higher, Apple Macintosh OSX 10.7.5 or higher
- Free Internet Radio
- TuneIn Radio, iHeartRadio, Calm Radio, Radio Paradise
- Integration Partners
- Control4, RTI, Crestron, URC, roon
- Rated Power
- 2 x 60W
- Rated Distortion
- ≤0.005%
- Signal-to-Noise Ratio
- -110dBA
- Sample Rate
- 32 – 192kHz
- Bit Depth
- 16 – 24

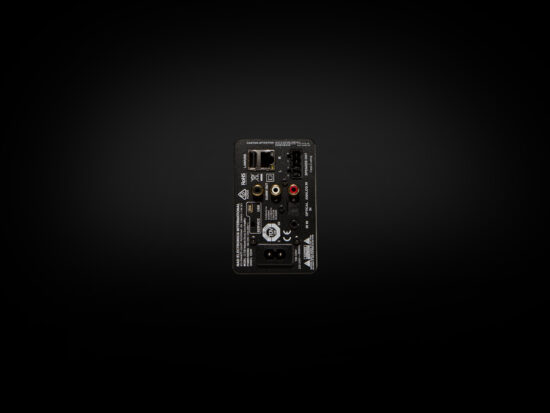

Connections
Input
- Analogue
- RCA Stereo
- SPDIF
- Optical (TOSLINK)
- USB
- Type A (for USB memory stick and supported peripherals – FAT32 formatted)
- Type B Mini USB (for servicing purposes only)
- IR Input
- 3.5mm Jack
Output
- Subwoofer OUT
- Speaker OUT
- Phoenix Speaker connection block
Network
- Ethernet/LAN
- Ethernet RJ45, GigE
User Interface
- FREE Android and iOS App available at GooglePlay and Apple App Store
General Specifications
- AC Power Supply
- 100-240V 50/60Hz
- Standby Power
- 6W (Network Standby Mode)
- Dimensions (W x H x D)
- 70 x 120 x 350mm (2.81 x 4.75 x 13.81”)
- Net Weight
- 1.6kg (3.5lb)
- Shipping Weight
- 2.3kg (5.1lb)
RM 720 Rack Mount Accessory
- Dimensions (W x H x D)
- 480 x 135 x 460mm (18.9 x 2.3 x 18.1”)
- Weight
- 4.28kg (9.45lb)
